Trust and Protection in the Illinois Browser Operating System

Shuo Tang, Haohui Mai, and Sam King

The Web is ubiquitous
    Email, banking, social networking, and more
Attacks at different layers
Web app vulnerabilities
Browser vulnerabilities
OS & lib vulnerabilities
Defend at lower layers
Web app vulnerabilities
Browser vulnerabilities
OS & lib vulnerabilities
Insecure web browsers
  • Monolithic
    • All in one address space
  • Easy to exploit
Web App
Web App
Web App
Firefox
Windows

Red indicates trusted computing base

Secure web browsers not enough
  • Isolate web apps
    • Contain attacks
  • Still have huge trusted computing base (TCB)
Web App
Web App
Web App
OP/Chrome Browser Kernel
TPC/IP
X Server
File Sys.
Drivers
Linux
Microkernel solves all problems?
  • Better isolation
  • But...
Browser Kernel
TCP/IP
X Server
File Sys.
Drivers
Web App
Web App
Web App
Microkernel
Illinois Browser Operating System (IBOS)
  • Goal: design new OS to make a single app more secure
  • Reduced TCB for web browser
Browser kernel
TCP/IP
X Server
File Sys.
Drivers
Web App
Web App
Web App

Browser Abstrations

IBOS Kernel
IBOS overview
  • IBOS architecture
  • Security invariants
  • Applying security invariants to IBOS
  • Evaluation
  • Conclusion
IBOS architecture
Traditional App
Unix Layer
Web Page Instance
Web Page Instance
Web Page Instance
Browser Abstrations
UI
Storage
Net Process
Net Process
Net Process
Device Drivers
IBOS Kernel
Hardware

Make browser abstractions first-class OS abstractions

Maintain browser security policy even if components completely compromised

Security invariants
IBOS label
  • Browser related label
    • Origin < protocol, domain, port >
      • http://www.cs.uiuc.edu:80 protocol domain port
    • Inferred and labeled by kernel
Isolate web apps

http://www.google.com

Web Page Instance
google

http://www.cs.uiuc.edu

Web Page Instance
uiuc
Isolate net processes
Web Page Instance
google
Web Page Instance
uiuc

GET: google.com

Net Process
google
google

GET: ads.com/somead.jpg

Net Process
google
ads.com

GET: ads.com/anotherad.jpg

Net Process
uiuc
ads.com

GET: cs.uiuc.edu

Net Process
uiuc
uiuc
Split driver architecture
Net Process
uiuc
ads.com
NIC Driver
IBOS Kernel
DMA Buffer

NIC Ver. Logic

Eth Frames

Check TCP Port
Check IP Address

DMA Addr

Set Tx Buf

Validate Tx Buf

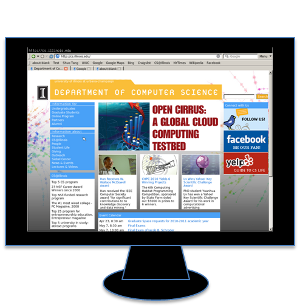

Basic frame buffer driver
Web Page Instance
uiuc

Pointer to frame buffer

Frame buffer memory pixel data

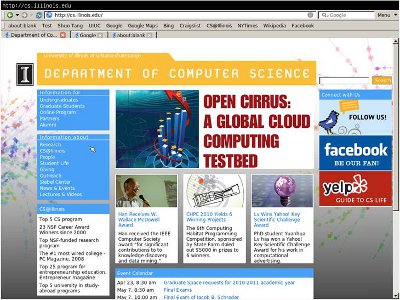

Tab display isolation
Web Page Instance
google
Web Page Instance
uiuc

Page protections

Storage architecture
  • Basic key-value pair object store
  • IBOS kernel encrypts data before storing it
  • Don't have to trust storage drivers and stack
    • HTTPS gives us similar properties for NIC driver
Implementation
  • L4Ka::Pistachio MMU abstr. and message passing
  • e1000 Ethernet driver, mouse, keyboard
  • Framebuffer video driver + Qt software raster
  • WebKit and Qt
  • Current "Unix-like" API is uclibc + Qt
    • Current "traditional apps" are Qt applications
    • Current plugin is PDF viewer
  • Intel Core Quad CPU @ 2.33 GHz, 4GB RAM
Evaluation
  • Goal: design new OS to make web browser more secure
    • Execute arbitrary inst. in untrusted components
    • Confidentiality and integrity
TCB
Software stack LOC
Firefox on Linux
Firefox
GTK+ & glibc
X.Org
Linux kernel
 > 5,600,000
~ 2,100,000
~ 1,200,000
~ 700,000
~ 1,600,000
ChromeOS
Chrome browser kernel
GTK+ & glibc
ChromeOS kernel & services
 > 4,400,000
~ 800,000
~ 1,200,000
~ 2,400,000
IBOS
IBOS kernel
L4Ka::Pistachio
 ~ 42,000
~ 9,000
~ 33,000
OS and library vulnerabilities
Affected component Num. Prevented
Linux overall
File system
Network stack
Other
21
12
5
4
20 (95%)
12 (100%)
5 (100%)
3 (75%)
X Server 2 2 (100%)
GTK+ & glibc 5 5 (100%)
Overall 28 27 (96%)

Published in CVE in 2010 as of Sep. 18

Browser vulnerabilities
Category Num. Chrome
Contained		 IBOS
Contained or prevented
Memory exploitation 82 71 (86%) 79 (96%)
Sandbox bypassing 12 0 (0%) 12 (100%)
Other 81 12 (15%) 44 (54%)
Overall 175 83 (46%) 135 (77%)

Bugs labeled as "security" in Google Chrome's bug track

Page load latency time
IBOS IBOS-Linux Firefox Chrome 3000 2500 2000 1500 1000 500 0 Google Maps Bing Craigslist CS@Illinois Wiki Facebook
Page load latency in milliseconds
Conclusions
  • Browser abstractions as the first-class OS abstractions
    • Trust: reduced TCB for web browser
    • Protection: withstand attacks to most components
Thanks!
    Questions?
